Cut-to-Length – Tension Leveling
Our Light Gauge Tension Level Line covers a wide range of products from .015” up to .134” x 72” wide material. We specialize in providing metal sheets with precise dimensions and exceptional flatness.
Precision Cutting and Light Gauge Tension Leveling

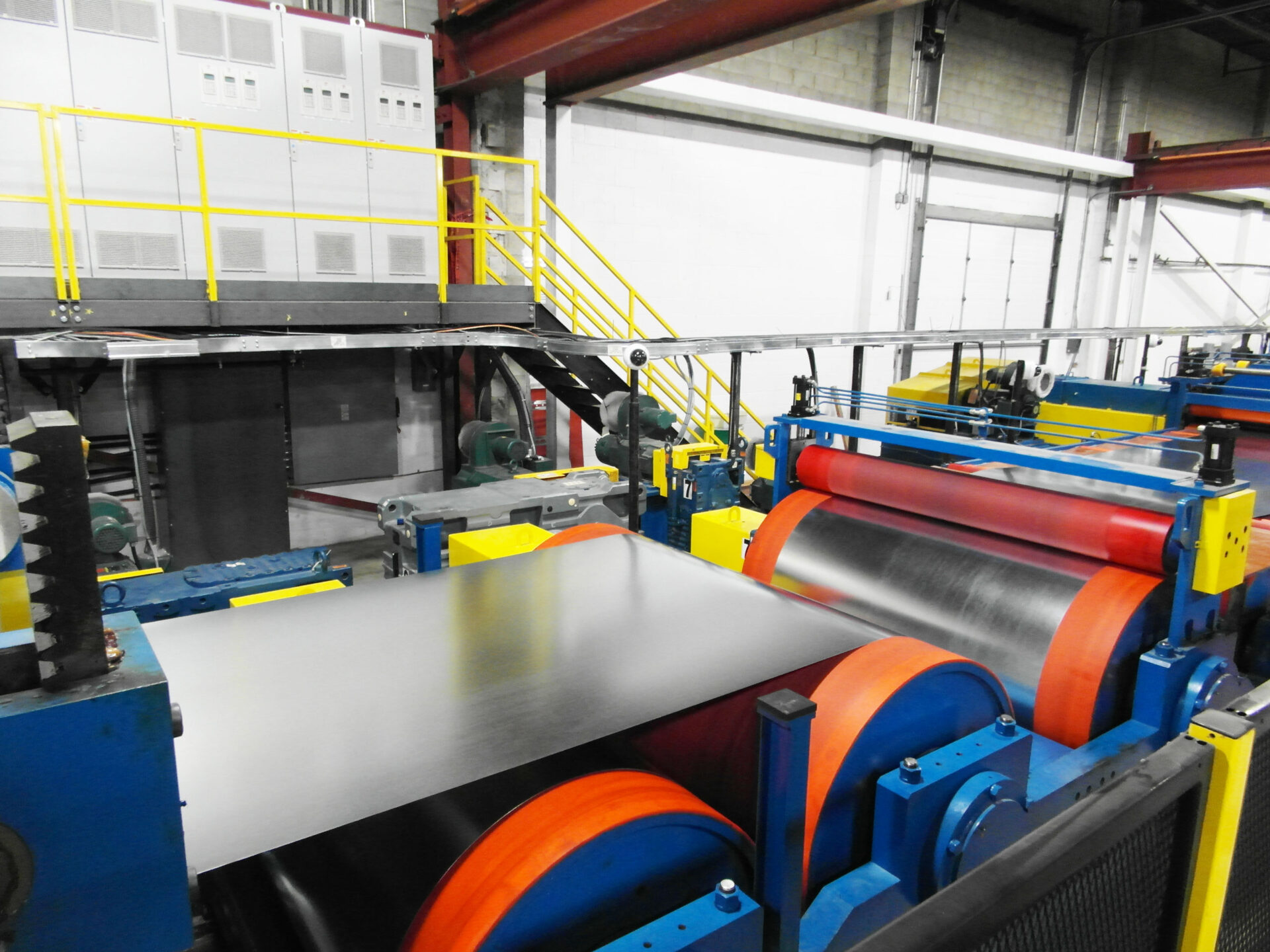

We process materials to meet your exact specifications, focusing on optimal flatness, squareness and surface finish. Whether you need standard or custom dimensions, our precision cutting ensures consistency with every piece. Our light gauge tension leveling line applies controlled tension to the metal removing any stresses or deformation. The result is metal that is ready for any of your applications.
Specifications
We process a wide range of materials from .015” up to .134” x 72” wide to your exact specifications.
Capacity | Tolerance | Material |
---|---|---|
Min. Length - 24" | + 1/8" -0.000" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum |
Max. Length - 240" | + 1/8" -0.000" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum |
Min. Width - 24" | + 1/2" -0.000" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum |
Max. Width - 72" | + 1/2" -0.000" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum |
Min. Thickness - .015" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum | |
Max. Thickness - .075" | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum | |
Max. Coil Weight - 60,000 lbs. | Pickled and Oiled, Galvanized, Satin Coat, Stainless and Aluminum |
Products We Offer
Explore materials we process using our Light Gauge Tension Levelling Line.
