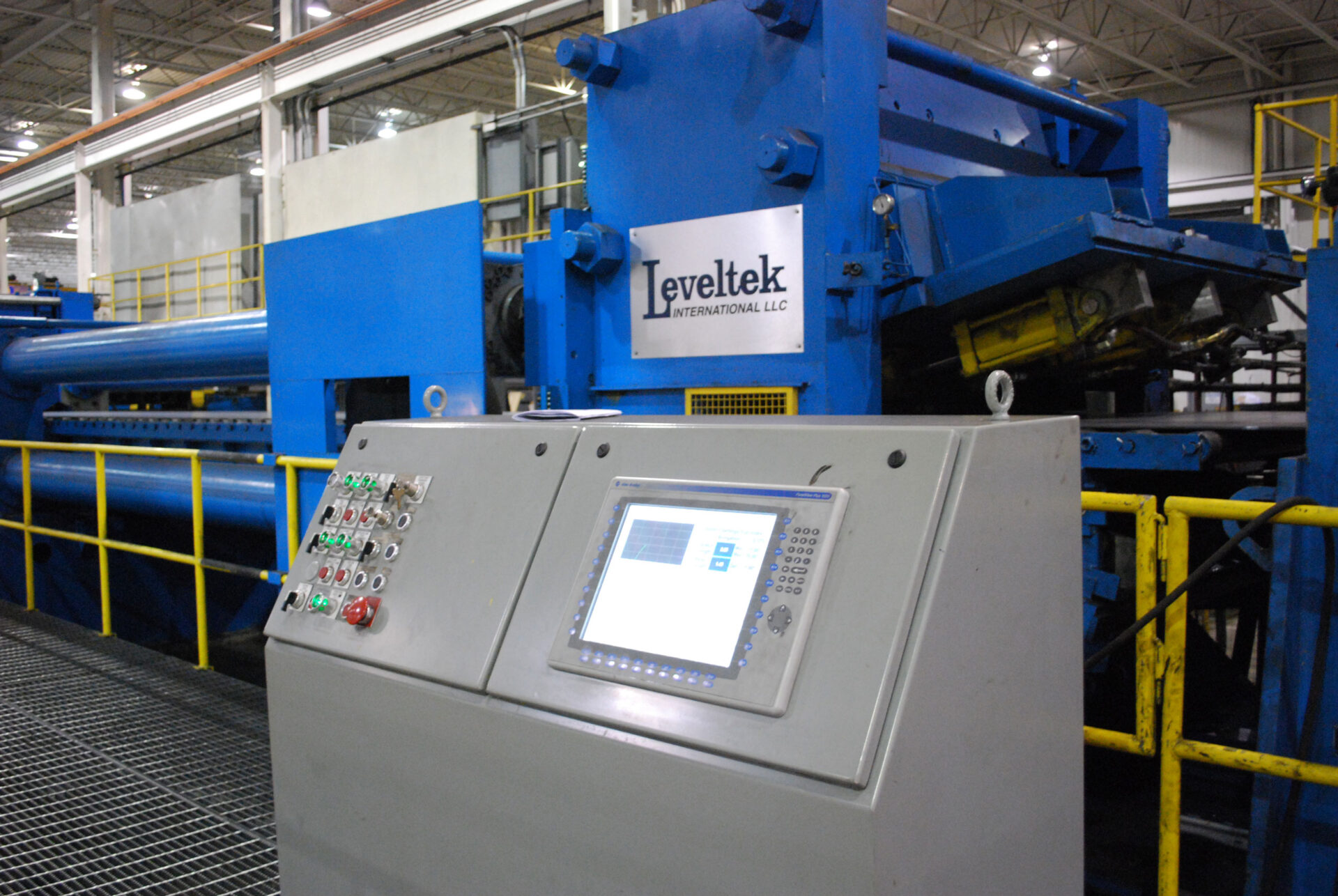

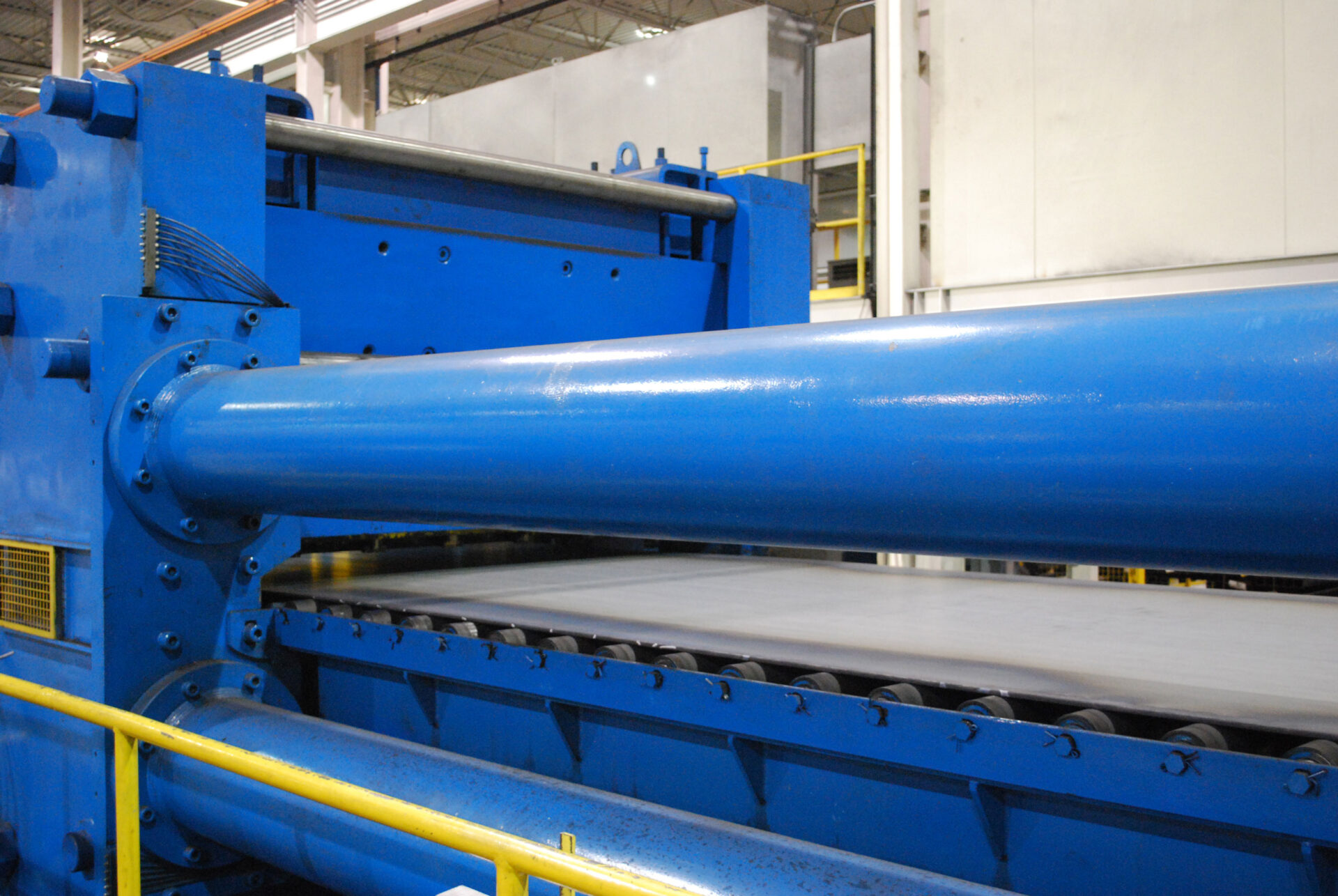

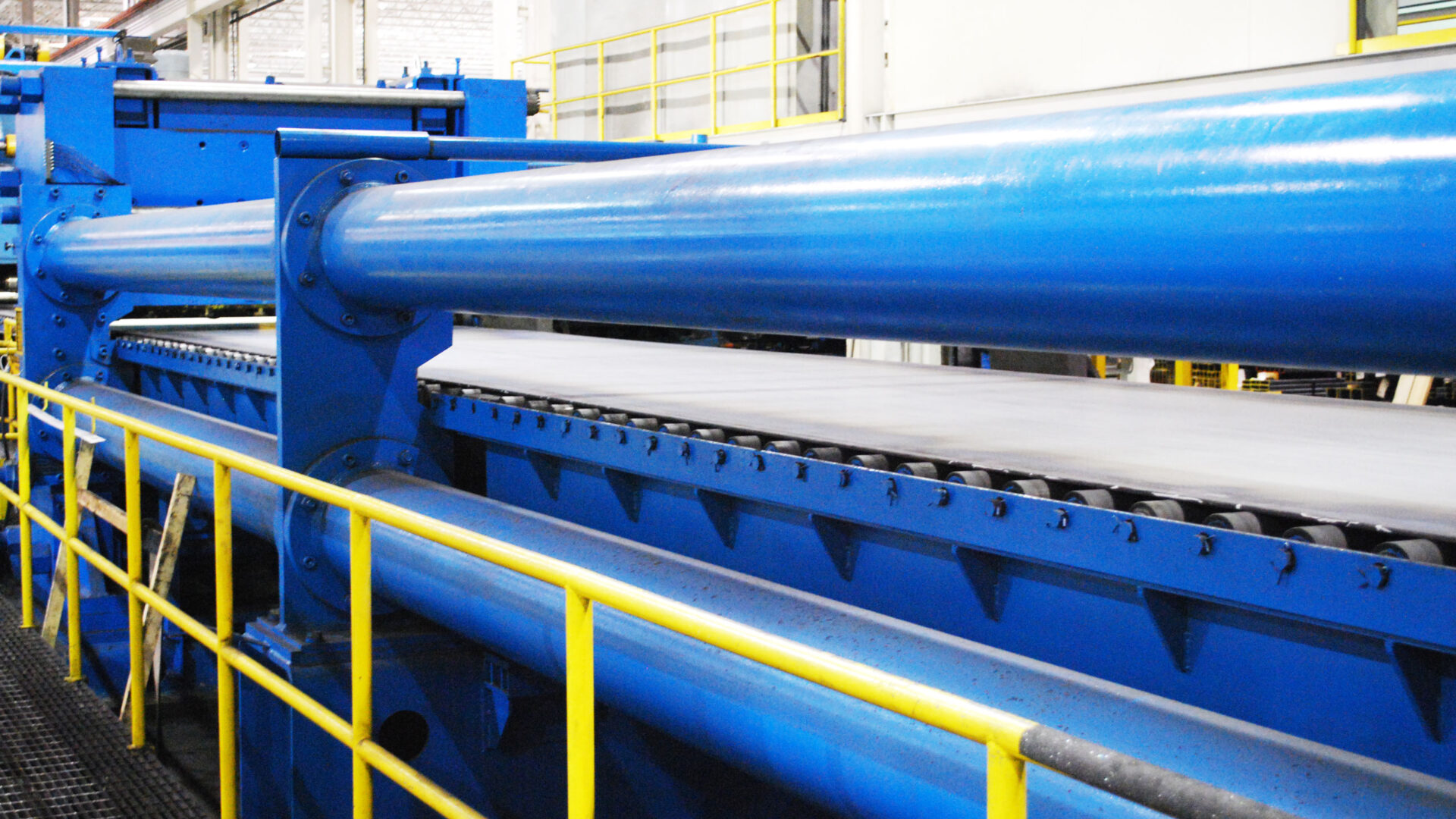

Cut-to-Length / Stretcher Leveling
We offer precision cut-to-length stretcher levelling for a wide range of products from .059" - .625" x 72 wide material.
Discover our Precision Cutting and Levelling.
Our advanced metal processing capabilities ensure that you receive precision-cut and processed metal with optimal flatness, squareness, and surface finish. Our equipment allows us to cut materials to your exact specifications in every piece. Our stretcher levelling is designed to remove any residual stress, or unevenness, to provide you with ready-to-use materials.
Specifications
We process materials to your exact specifications. Our stretcher leveller line covers a range of products from .059" to .625" x 72 wide material.
Capacity | Tolerance | Material |
---|---|---|
Min. Length - 24" | + 1/4" -0.000" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate |
Max. Length - 720" | + 1/4" -0.000" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate |
Min. Width - 30" | + 1/2" -0.000" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate |
Max. Width - 72" | + 1/2" -0.000" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate |
Min. Thickness - .048" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate | |
Max. Thickness - .500" | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate | |
Max. Coil Weight - 70,000 lbs. | Hot Rolled, Pickled and Oiled, Cold Rolled, Galvanized Satin Coat, Checker Plate |
Products We Offer
Explore materials we process using our stretcher levelling line.
