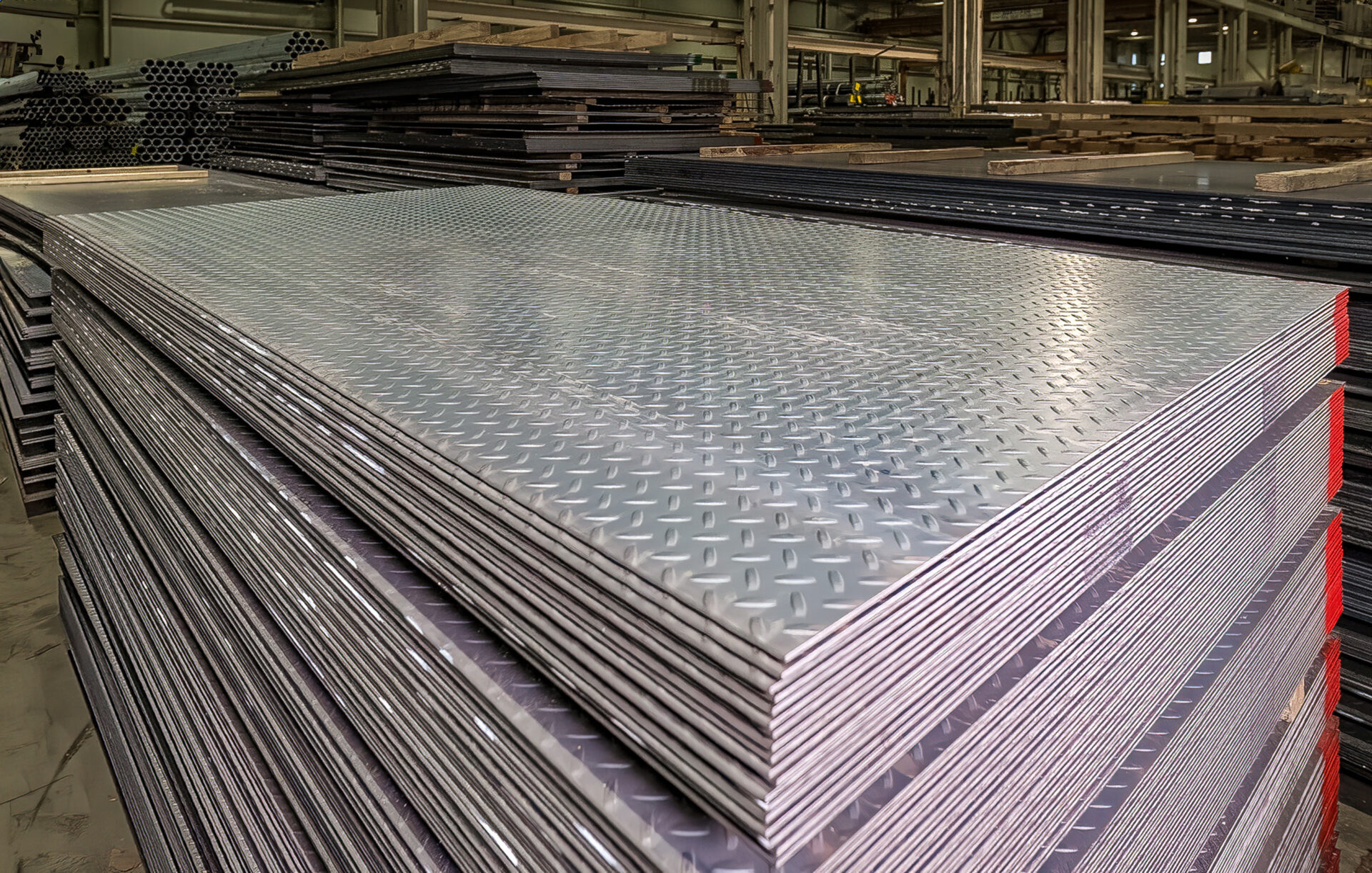

Checker Plate
A wide variety of checker plate gauges and widths for any project.
We carry one of the largest and most diverse checker plate product lines in the industry. Our inventory includes a variety of gauges and widths to meet your project requirements. Material is produced from our stretcher leveller line with optimal flatness, squareness, surface finish, and can be tailored to custom lengths for your project requirements.
Checker Plate Specifications
| Gauge No. | Thickness Decimal Equivalent | Weight lbs./sq. ft. |
|---|---|---|
| 14 Gauge | 0.079 | 3.75 |
| 12 Gauge | 0.11 | 5.25 |
| 1/8" | 0.125 | 6.15 |
| 3/16" | 0.1875 | 8.75 |
| 1/4" | 0.25 | 11.25 |
| 5/16" | 0.3125 | 13.16 |
| 3/8" | 0.375 | 16.37 |
| 1/2" | 0.5 | 21.45 |
