Hot Rolled
Explore Precision and Durability with Hot Rolled Steel.

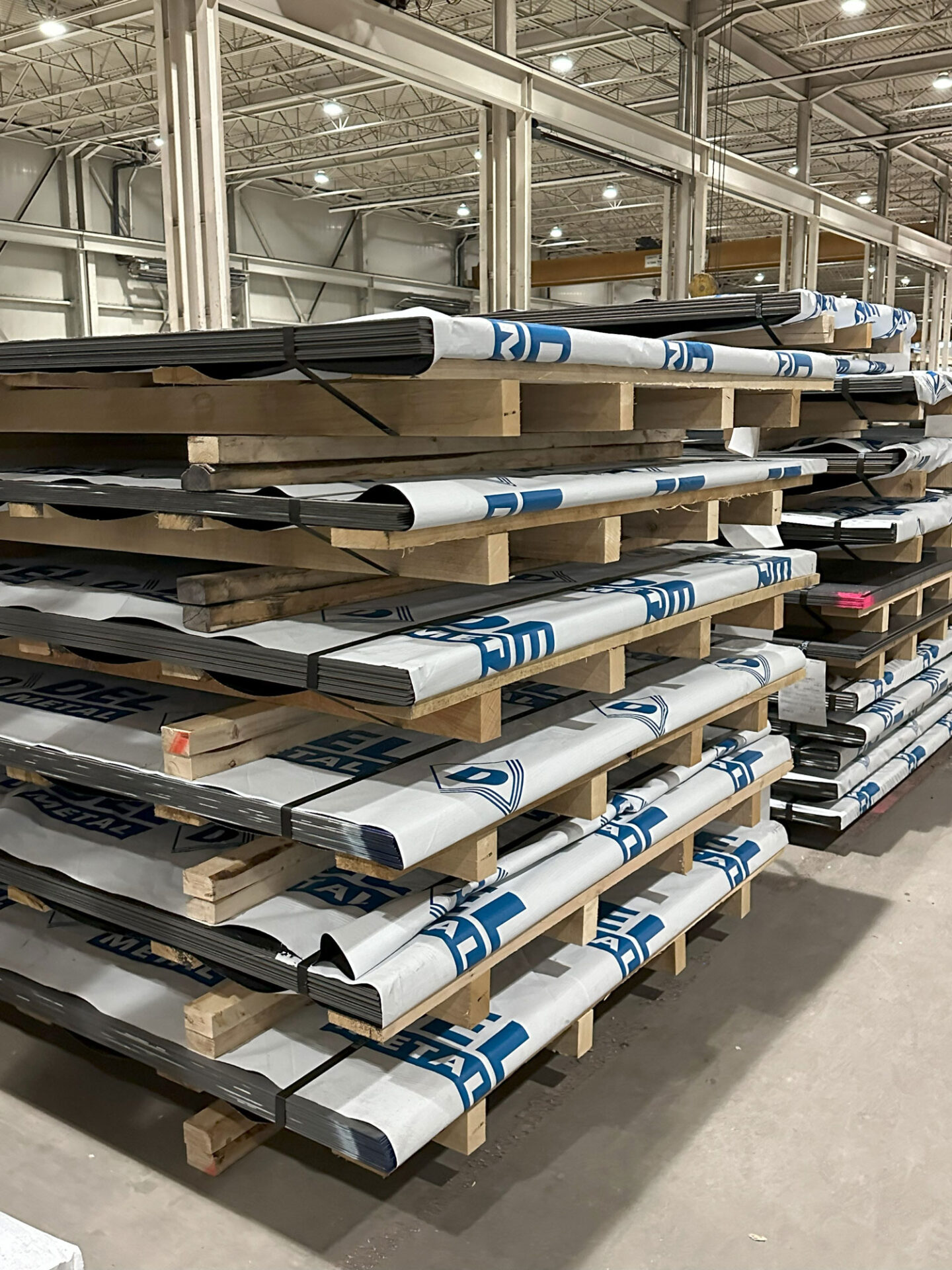

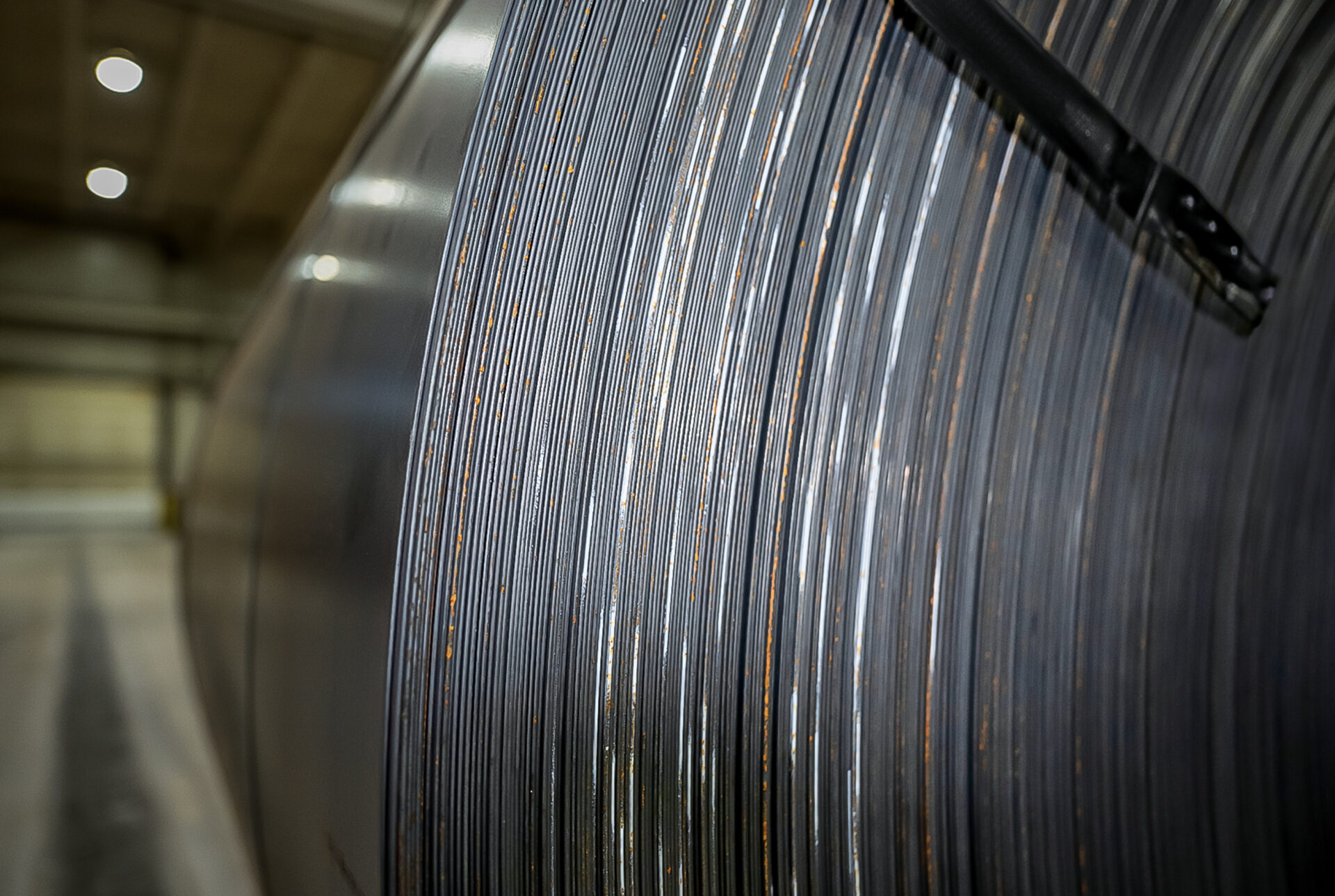

Find hot rolled steel in the grade, width and thickness you require for any project. We stock a full range of commercial-quality & graded hot-rolled sheets. Our key products include A1011, CS type B, 44w/50w and A36. Hot rolled sheet is cut from the coil on our stretcher leveller line with optimal flatness, squareness and surface finish. The sheets can be tailored to the custom lengths required for your project.
Hot Rolled Steel Specifications
| Gauge No. | Thickness Decimal Equivalent | Order Limits | Weight lbs./sq. ft. | Order Limits |
|---|---|---|---|---|
| 1/2 | 0.5 | 0.4900 - 0.5300 | 20.42 | 20.42 |
| 3/8 | 0.375 | 0.3600 - 0.4050 | 15.31 | 15.31 |
| 5/16 | 0.312 | 0.3000 - 0.3300 | 12.76 | 12.76 |
| 1/4 | 0.25 | 0.2400 - 0.2650 | 10.21 | 10.21 |
| 4 | 0.2242 | 0.2316 - 0.2168 | 9.375 | 9.687 - 9.063 |
| 5 | 0.2092 | 0.2167 -0.2018 | 8.75 | 9.062 - 8.438 |
| 6 | 0.1943 | 0.2017 - 0.1869 | 8.125 | 8.437 - 7.813 |
| 3/16 | 0.188 | 0.1810 - .1960 | 7.66 | 7.66 |
| 7 | 0.1793 | 0.1868 - 0.1719 | 7.5 | 7.812 - 7.188 |
| 8 | 0.1644 | 0.1718 - 0.1570 | 6.875 | 7.187 - 6.563 |
| 9 | 0.1495 | 0.1569 - 0.1420 | 6.25 | 6.562 - 5.938 |
| 10 | 0.1345 | 0.1419 - 0.1271 | 5.625 | 5.937 - 5.313 |
| 11 | 0.1196 | 0.127 - 0.1121 | 5 | 5.312 - 4.688 |
| 12 | 0.1046 | 0.112 - 0.0972 | 4.375 | 4.687 - 4.063 |
| 13 | 0.0897 | 0.0971 - 0.0822 | 3.75 | 4.062 - 3.438 |
| 14 | 0.0747 | 0.0821 - 0.0710 | 3.125 | 3.437 - 2.969 |
| 15 | 0.0673 | 0.0709 - 0.0636 | 2.812 | 2.968 - 2.657 |
| 16 | 0.0598 | 0.0635 - 0.0568 | 2.5 | 2.656 - 2.375 |
| 17 | 0.0538 | 0.0567 - 0.0509 | 2.25 | 2.374 - 2.125 |
| 18 | 0.0478 | 0.0508 - 0.0449 | 2 | 2.124 - 1.875 |
| 19 | 0.0418 | 0.0448 - 0.0389 | 1.75 | 1.874 - 1.625 |
| 20 | 0.0359 | 0.0388 - 0.0344 | 1.5 | 1.624 - 1.438 |
| 21 | 0.0329 | 0.0343 - 0.0314 | 1.375 | 1.437 - 1.313 |
| 22 | 0.0299 | 0.0313 - 0.0284 | 1.25 | 1.312 - 1.188 |
| 23 | 0.0269 | 0.0283 - 0.0255 | 1.125 | 1.187 - 1.063 |
| 24 | 0.0239 | 0.0254 - .0225 | 1 | 1.062 - 0.938 |
| 25 | 0.0209 | 0.0224 - 0.0195 | 0.875 | 0.937 - .0813 |
| 26 | 0.0179 | 0.0194 - 0.0172 | 0.75 | 0.812 - 0.719 |
| 27 | 0.0164 | 0.0171 - 0.0157 | 0.688 | 0.718 - 0.657 |
| 28 | 0.0149 | 0.0156 - 0.0142 | 0.625 | 0.656 - 0.594 |
| 29 | 0.0135 | 0.0141 - 0.0128 | 0.562 | 0.593 - 0.532 |
| 30 | 0.012 | 0.0127 - 0.0113 | 0.5 | 0.531 - 0.469 |
| 31 | 0.0105 | 0.0112 - 0.0101 | 0.4375 | 0.468 - 0.422 |
