Find strength and stability with Wide Flange Beams (W-Beams).

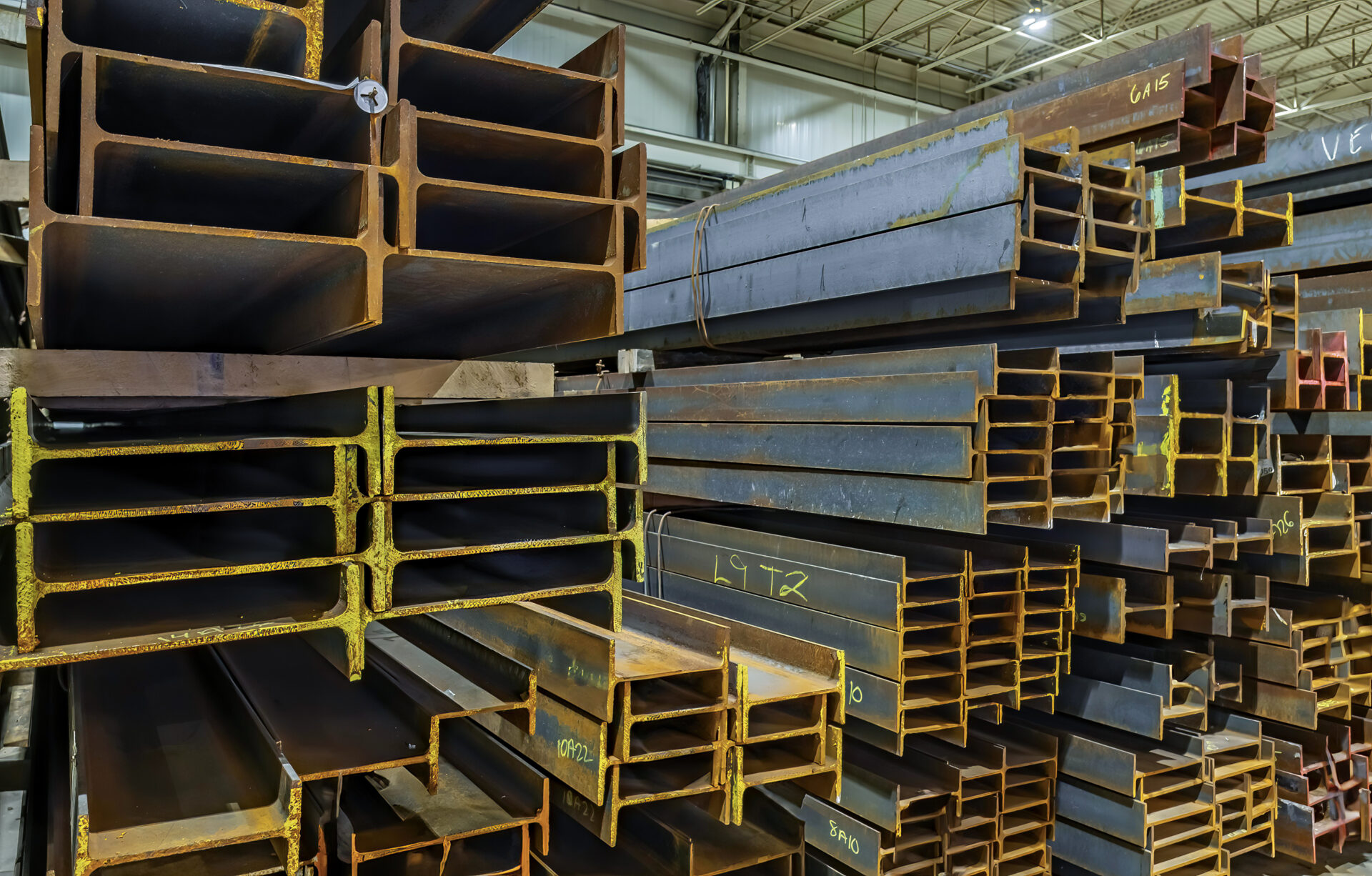

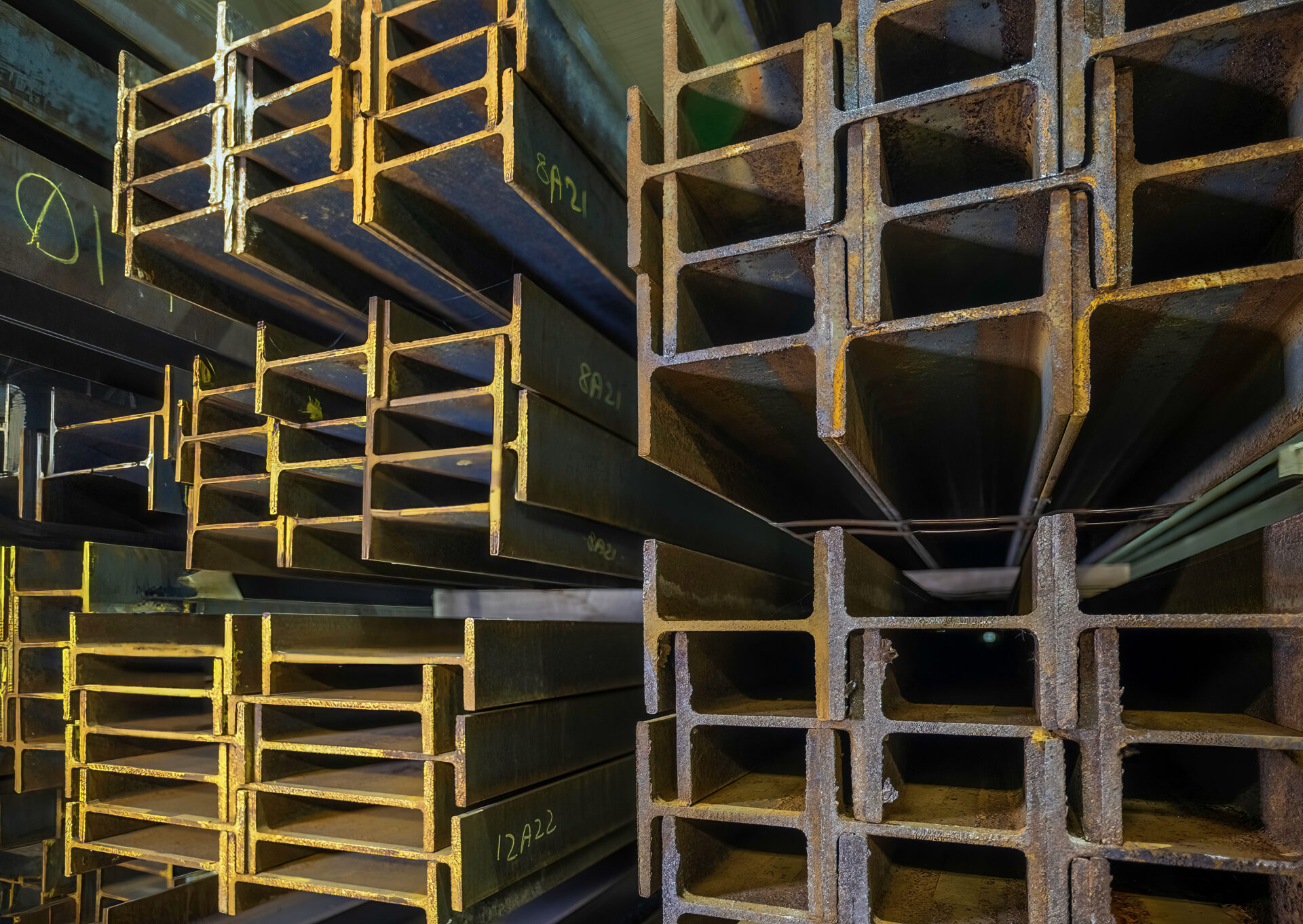

We supply some of the cleanest beams in the industry because we know quality, safety and longevity are important to you. We store our beams in a temperature-controlled warehouse to preserve their quality. Wide flange beams are created with an H-shaped cross-section for increased surface area and load capacity.

Wide Range Beam Specifications

Imperial Designation W Series	Lbs.	Depth d in.	Flange Width b in.	Flange Thick tf (inches)	Web t (inches)
W 4	13	4.16	4.06	0.345	0.28
W 5	16	5.01	5	0.36	0.24
	19	5.15	5.03	0.43	0.27
W 6	9	5.9	3.94	0.215	0.17
	12	6.03	4	0.28	0.23
	15	5.99	5.99	0.26	0.23
	15	5.99	5.99	0.26	0.23
	16	6.28	4.03	0.405	0.26
	20	6.2	6.02	0.365	0.26
	25	6.38	6.08	0.455	0.32
W 8	10	7.89	3.94	0.205	0.17
	13	7.99	4	0.255	0.23
	15	8.11	4.015	0.315	0.245
	18	8.14	5.25	0.33	0.23
	21	8.28	5.27	0.4	0.25
	24	7.93	6.495	0.4	0.245
	28	8.06	6.535	0.465	0.285
	31	8	7.995	0.435	0.285
	35	8.12	8.02	0.495	0.31
	40	8.25	8.07	0.56	0.36
	48	8.5	8.11	0.685	0.4
	58	8.75	8.22	0.81	0.51
W 10	12	9.87	3.96	0.21	0.19
	15	9.99	4	0.27	0.23
	17	10.11	4	0.33	0.24
	19	10.24	4	0.39	0.25
	22	10.17	5.75	0.36	0.24
	26	10.33	5.77	0.44	0.26
	30	10.47	5.81	0.51	0.3
	33	9.73	7.96	0.435	0.29
	39	9.92	7.985	0.53	0.315
	45	10.1	8.02	0.62	0.35
W10	49	9.98	10	0.56	0.34
	54	10.09	10.03	0.615	0.37
	60	10.24	10.08	0.68	0.42
	68	10.4	10.13	0.77	0.47
	77	10.6	10.2	0.87	0.53
	88	10.83	10.3	0.99	0.6
	100	11.1	10.4	1.1	0.68
	112	11.4	10.43	1.25	0.76
W 12	14	11.91	3.97	0.225	0.2
	16	11.99	3.99	0.265	0.22
	19	12.16	4.005	0.35	0.235
	22	12.31	4.03	0.425	0.26
	26	12.22	6.49	0.38	0.23
	30	12.34	6.52	0.44	0.26
	35	12.5	6.56	0.52	0.3
	40	11.94	8.005	0.515	0.295
	50	12.19	8.08	0.64	0.37
	53	12.06	10	0.575	0.345
	65	12.12	12	0.605	0.39
	72	12.25	12.04	0.67	0.43
	79	12.38	12.08	0.735	0.47
W 14	22	13.74	5	0.335	0.23
	26	13.91	5.025	0.42	0.255
	30	13.84	6.73	0.385	0.27
	34	13.98	6.745	0.455	0.285
	43	13.66	7.995	0.53	0.305
	48	13.79	8.03	0.595	0.34
	53	13.92	8.06	0.66	0.37
	61	13.89	10	0.645	0.375
	90	14.02	14.52	0.71	0.44
	90	14.16	14.565	0.78	0.485
	109	14.32	14.605	0.86	0.525
W14	120	14.48	14.67	0.94	0.59
	132	14.66	14.72	1.03	0.645
W 16	26	15.69	5.5	3.45	0.25
	31	15.88	5.52	0.44	0.275
	36	15.86	6.985	0.43	0.295
	40	16.01	7	0.505	0.305
	45	16.13	7.035	0.565	0.345
	50	16.26	7.07	0.63	0.38
	57	16.43	7.12	0.715	0.43
	77	16.52	10.295	0.76	0.455
W 18	35	17.7	6	0.425	0.3
	40	17.9	6.02	0.525	0.515
	41	17.7	7.45	0.425	0.32
	45	17.86	7.48	0.499	0.335
	46	18.06	6.06	0.605	0.36
	50	17.99	7.5	0.57	0.355
	55	18.11	7.53	0.63	0.39
	60	18.24	7.56	0.695	0.415
	65	18.35	7.59	0.75	0.45
	71	18.47	7.635	0.81	0.495
	76	18.21	11.035	0.68	0.425
W 21	44	20.66	6.5	0.45	0.35
	50	20.83	6.53	0.535	0.38
	55	20.8	8.22	0.522	0.375
	57	21.06	6.56	0.65	0.405
	62	20.99	8.24	0.615	0.4
	68	21.13	8.27	0.685	0.43
	73	21.24	8.3	0.74	0.455
	83	21.43	8.36	0.835	0.515
	93	21.62	8.42	0.93	0.58
W 24	55	23.57	7	0.505	0.395
	62	23.74	7.04	0.59	0.43
W24	68	23.73	8.96	0.585	0.415
	76	23.92	8.99	0.68	0.44
	84	24.1	9.02	0.77	0.47
	94	24.31	9.06	0.875	0.515
	104	24.06	12.75	0.75	0.5
W 30	173	30.44	14.985	1.065	0.655
